Battery removal

• Remove the floor mat (Covered in this Owner's Manual).

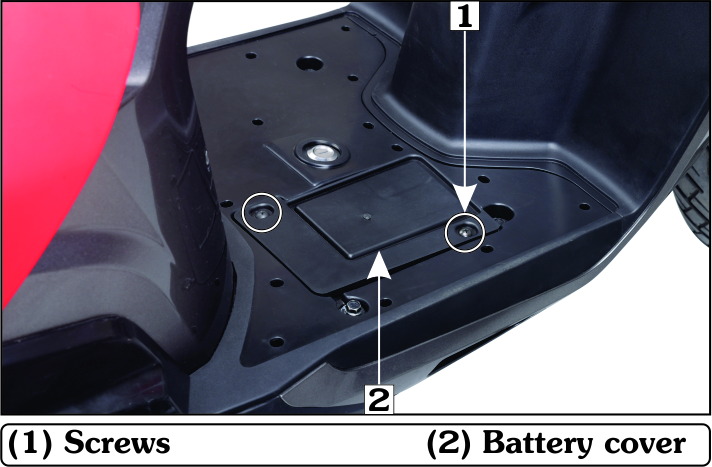

• Remove the battery cover two screws (1) and remove battery cover (2).

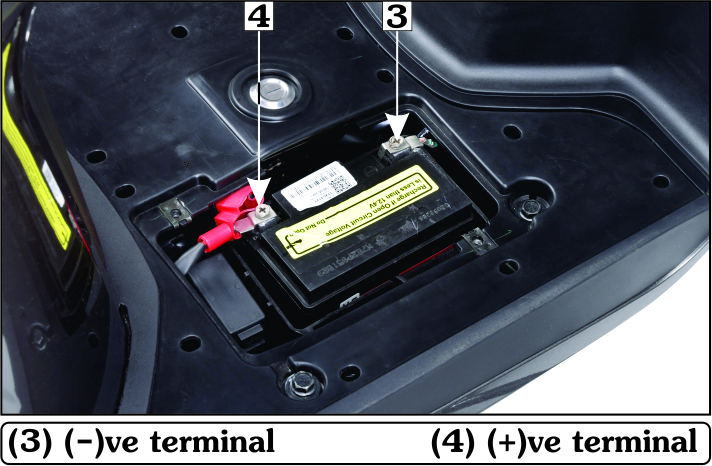

• Disconnect the (-)ve terminal lead (3) from the battery first, then disconnect the (+)ve terminal lead (4).

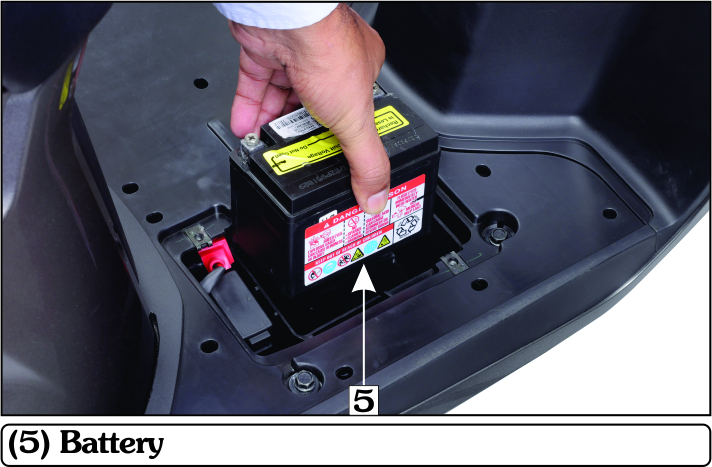

• Remove the battery (5).

.Battery installation

• Reinstall in the reverse order of removal. Be sure to connect the (+)ve terminal first, then the (-)ve terminal.

• Check if the bolts and other fasteners are secured.
